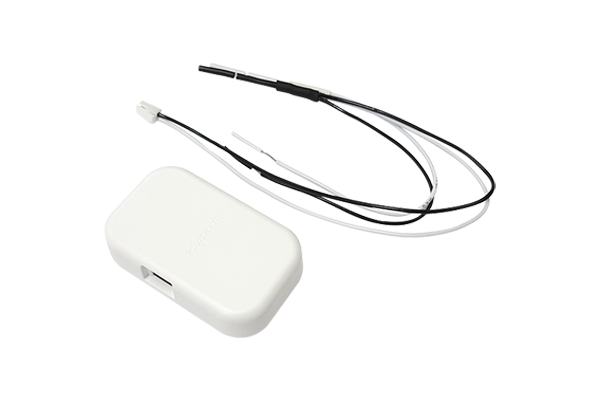

The remo+ Power Kit helps connect your existing doorbell chime with RemoBell S.
Installation Instructions
Insert one end of the Wire Harness into the Power Kit
Remove the cover of your mechanical chime
Take a picture of the existing wiring for reference during installation
Loosen the screws and remove the wires. Then straighten the exposed end of the wires
Connect the Wire Harness to the "TRANS" and "FRONT" chime terminals
Insert an exposed end of the Wire Harness and one chime wire into te Wire Nut, and twist it tightly. Repeat with remaining wires.ls
Connect the Wire Harness to the "TRANS" and "FRONT" chime terminals.
Place your Power Kit so that it doesn't interfere with moving parts or muffle the chime. You can use the adhesive backing to hold it in place Put the chime cover back on
